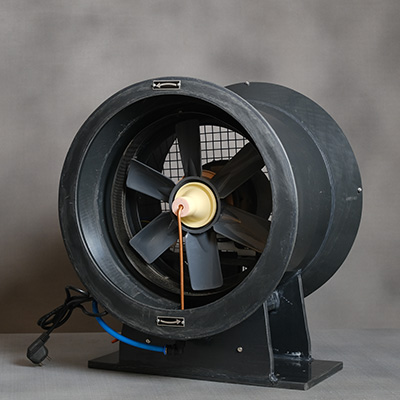

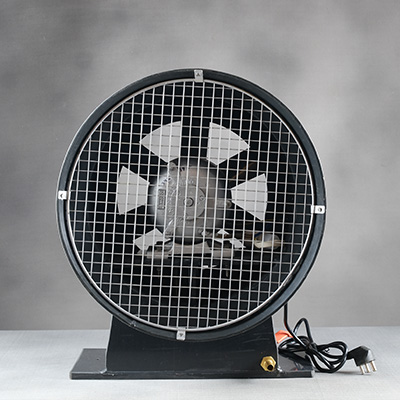

Humidex 40 (Humidifier)

A Humidifier With High Versatility.
Instant solutions for humidification problems.
  • Hot & Dusty air enters the unit through perforated filter plate.
  • Fan assembly performs the dual function of blowing air & atomizing water.
  • Water at contstant pressure is admitted at the center of the Fan.
  • Water travels on Guide disc through the holes in the fan hub.
  • Due to centrifugal force, the water on the Guide Disc strikes the Atomizer Grid with great impact where the water layer is broken into the fine mist.
  • The mist mingles with the air produced by the fan & spreads out uniformly into the room.
  • Surplus unatomized water is drained out.

Applications

Ginning Units
Storage Halls
Blow Rooms
Reeling Departments
Weaving Departments
Yarn Conditioning Sections
Paper & Pulp Mills
Tea & Tobacco Industries
Green House & Nurseries

Salient Features

  • Corrosion Proof Construction.
  • Low Power Consumption (350 Watts).
  • Compact Heavy Duty Design.
  • Light Weight & Portable.
  • Easy To Install & Maintain.
  • Low Initial Cost.
  • 100% Factory Assembled.

Technical Specifications

  • Dimensions : 425mm X 422mm X 515mm
  • Weight : 15 Kgs
  • Air Circulation : 1700 cu.m/Hr.
  • Water Consumtion : 40 lit/Hr. max.
  • Power Consumption : 350 Watts.
  • Electrical Connections : 230 V 50 Hz AC
