Products

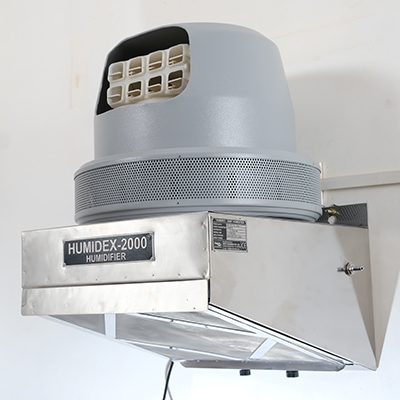

Humidex 2000
(Atomizer Humidifier)

¡°HUMIDEX & SUSPENDEX¡± Series Of Humidifiers/Atomizers are unique devices or models of their own kinds and are scientifically designed for continuous working. They work on the principle of centrifugal atomization and produce droplets free aerosol/mist with no wastage of water & maintain the desired humidity level (RH %) in the department without stoppage.

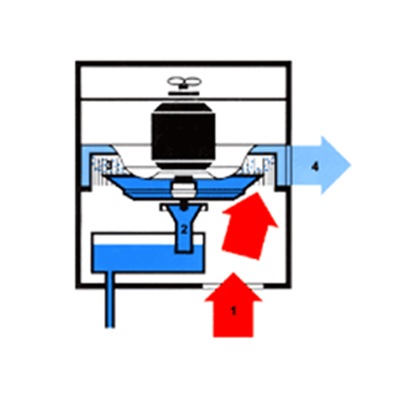

  • The water is lifted upwards on the revolving PVC discs by a centrifuge, rotating on high speed (2850 rpm)
  • Due to high centrifugal force, the water strikes the SS atomizer grid with great impact, where the water layer is broken into ultra fine mist.
  • The flow of air carries the droplet free aerosol/mist into the department

Applications

Weaving Mills
Post Spinning Sections
Blow Rooms
Knitting Units
Yarn Conditioning Departments
Silk & Woolen Mills
Ceramic Tiles Industries
Cement Pavers Block Industries
Food Storage Halls
Cold Storage & Warehouses
Paper & Pulp Mills
Tea & Tobacco Industries
Green Houses & Nurseries
Foggy Rooms

Salient Features

  • No Corrosion problems
  • No shocking electricity bills
  • No wastage of waters
  • No water droplets carry over (water particle size 5- 10 microns)
  • No rusting of machineries
  • No water pump required
  • No plant room construction/structural modifications required
  • No special wiring & control panel required
  • No installation, operation & maintenance cost
  • No over flow of water (In-Built Float Valve)

Technical Specifications

  • Dimensions : 460 X 690 X 512
  • Voltage Required : 220 V +/- 10%, 50HZ.
  • Air Circulation : 800 Meter Cube/Hour
  • Water Connection : By 3/8’’ Flexible Pipe
  • Evaporation Capacity : 6-7 Ltrs/Hr, & 9 Ltrs/Hr.
  • Area Coverage : 6000 CFT (Ft.3) Approx
  • Power Consumption : 240 Watts
  • Water Practicales Size : 5 – 10 Microns
  • Weight (Dry) : 28 Kgs.
