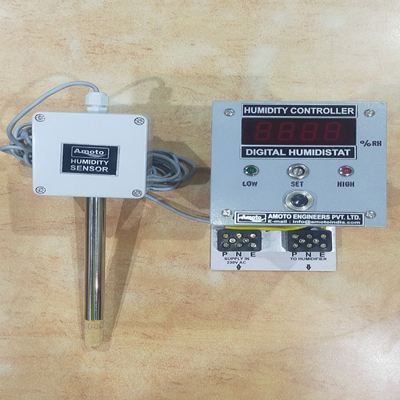

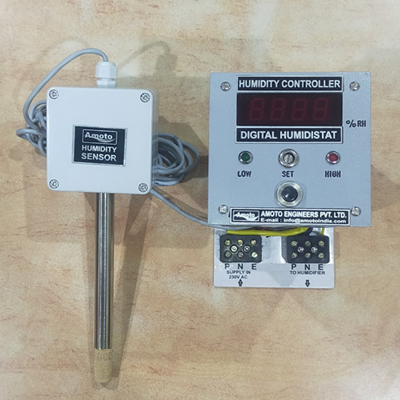

The Digital Humidistat controls the humidifier automatically and maintains the desired R.H. % in the department by simply selecting the desired humidity level with the help of the push button provided on the device.
R.H. % can be set within the range from 10% to 95% to maintain the desired R.H. % in the department
Technical Specifications
Dimensions : Instrument=100mm L X 200mm D X 170mm H Sensor= 80mm L X 55mm D X 270 mm H
Range : 10 To 95% RH (relative humidity)
Input : Remote sensor in a current loop
Output : Relay change-over contact, Rated for 5A resistive at 230 + 10% V AC, 50Hz.
Indication : On 3 ½ digit seven segment LED display with auto polarity
